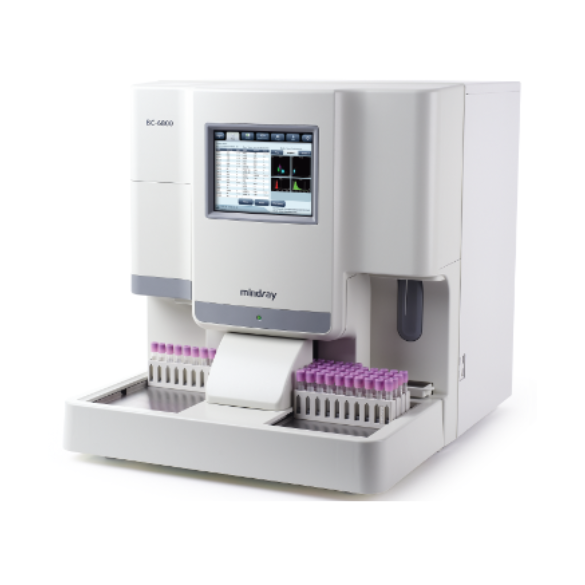

The Mindray BC-6800Plus is a fully automated 6-part differential hematology analyzer with integrated ESR, designed to deliver high clinical value through powerful integration and high throughput. Equipped with Mindray’s SF Cube technology and Easy-W ESR solution, the BC-6800Plus provides CBC, NRBC, reticulocyte, platelet, and ESR results in a fast, cost-efficient workflow. Its strong abnormal cell detection capability, malaria screening support, and body fluid analysis make it an excellent solution for laboratories seeking advanced diagnostics within a controlled budget.
6-Part WBC Differential with SF Cube Technology – Uses 3D scatter, fluorescence, and laser analysis to accurately report neutrophils, lymphocytes, monocytes, eosinophils, basophils, and immature granulocytes
Integrated Easy-W ESR Technology – Provides reliable ESR results within 30 seconds, with high correlation to the Westergren reference method
NRBC Detection in Routine CBC – Automatically reports NRBC#, NRBC% and corrects WBC counts, improving accuracy in neonatal and pathological samples
PLT-H & PLT-O Platelet Technologies – Combines impedance and optical methods to ensure accurate platelet results, especially in low PLT counts and platelet clump conditions
High Throughput & Large Loading Capacity – Processes up to 200 samples/hour (CBC+DIFF) and supports 100 sample tubes simultaneously
The Mindray BC-6800Plus operates using SF Cube measurement technology, which integrates laser light scatter, fluorescence flow cytometry, and 3D data analysis for precise cell differentiation. Red blood cells and platelets are measured using the focusing flow DC impedance method, while white blood cells, NRBCs, reticulocytes, and optical platelets are analyzed through fluorescence and multi-angle laser scatter signals. Hemoglobin is measured using a cyanide-free photometric method, and ESR is determined using a photometric ESR principle (Easy-W ESR) with clinically proven correlation to the Westergren method.
BC-6800Plus delivers a 6-part WBC differential, including immature granulocytes, using SF Cube technology.
ESR results are generated within 30 seconds per sample, significantly faster than the traditional Westergren method.
Yes, NRBC# and NRBC% are reported in every CBC, with automatic WBC correction for improved accuracy.
Yes, it provides InR parameters and flags to assist in screening and assessing the severity of malaria infection.
Yes, the analyzer supports automated analysis of pleural, peritoneal, cerebrospinal, and synovial fluids without dedicated reagents.
