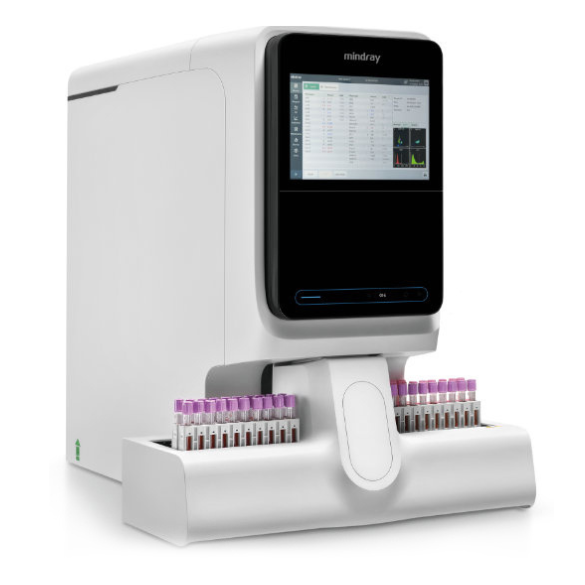

The Mindray BC-7800 is a high-performance fully automated 5-part hematology analyzer with integrated ESR, designed to deliver maximum diagnostic efficiency using a single blood tube and a single analytical process. Built on Mindray’s advanced SF-Cube technology, the BC-7800 provides comprehensive CBC, differential, reticulocyte, platelet, and ESR analysis with enhanced abnormal cell screening, body fluid testing, and extensive research parameters, making it ideal for medium- to high-volume clinical laboratories.
Expanded Diagnostic Capability – Provides 54 reportable clinical parameters and up to 77 research parameters, offering deeper insight into hematological conditions
Advanced SF-Cube Cell Analysis – Uses 3D scatter, fluorescence, and laser flow analysis for precise identification of WBC subpopulations, reticulocytes, and abnormal cells
Integrated ESR with High Correlation – Generates ESR results alongside CBC in a single run, showing strong agreement with the Westergren method
Optical Platelet Technologies (PLT-H & PLT-O) – Ensures accurate platelet counting in low PLT samples and platelet clump conditions without additional reagents
Comprehensive Body Fluid Testing – Supports routine and high-sensitivity body fluid (hs-BF) analysis, including CSF, pleural, peritoneal, and synovial fluids
The Mindray BC-7800 operates using SF-Cube measurement technology, integrating laser light scatter, fluorescence flow cytometry, and 3D data processing for advanced hematological analysis. Red blood cells and platelets are measured using the focusing flow DC impedance method, while white blood cells, reticulocytes, and optical platelets are analyzed through multi-angle laser scatter combined with fluorescence signals. Hemoglobin is measured using a cyanide-free photometric method, and ESR is determined using a photometric ESR measurement principle with proven correlation to the Westergren reference method.
BC-7800 offers extended research parameters, optical platelet analysis (PLT-O), reticulocyte maturity indices, and integrated ESR, providing deeper clinical information.
Yes, BC-7800 includes PLT-H and PLT-O technologies, improving accuracy in low platelet counts and platelet aggregation cases.
Yes, it provides RET#, RET%, IRF, LFR, MFR, and HFR, supporting early anemia diagnosis and therapy monitoring.
Yes, the system supports routine and high-sensitivity body fluid (hs-BF) testing without manual pre-treatment.
The analyzer uses automatic re-testing, coordinated scattergram analysis, and intelligent flagging to reduce manual review and improve diagnostic confidence.
